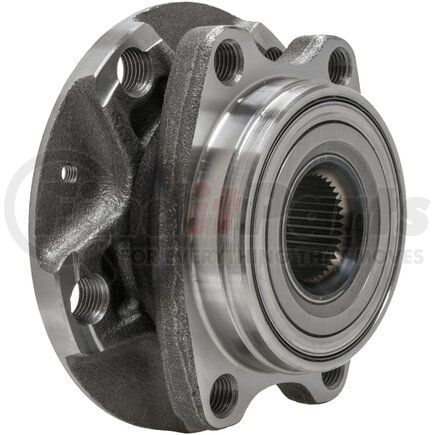

MPA Electrical WH512305H - Wheel Bearing and Hub Assembly - 5-Stud, 38 Spline, M14 x 1.5mm
- Part Number
- WH512305H
- Manufacturer
- MPA ELECTRICAL
- Description
-
Wheel Bearing and Hub Assembly - 5-Stud, 38 Spline, M14 x 1.5mm
details
$10099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MPA ELECTRICAL part description
Wheel Bearing and Hub Assembly - 5-Stud, 38 Spline, M14 x 1.5mm
Product Description
Wheel Bearing and Hub Assembly - 5-Stud, 38 Spline, M14 x 1.5mm
Application Summary
2002-2009 Audi A4, 2002-2009 Audi A4 Quattro, 2002 Audi RS4, 2007-2008 Audi RS4, 2003-2004 Audi RS6, 2002 Audi S4, 2004-2009 Audi S4, 2002-2004 Audi S6, 2007-2008 Audi S6, 2001-2003 Audi S8, 2007-2008 Audi S8
Features & Benefits
- Premium, high-carbon steel alloys improve load bearing capabilities and strength.
- Induction hardened, micro-finished races improve bearing durability and load capacity.
- Application-specific ABS sensors included for perfect vehicle control system signaling.
Product Attributes
| Greaseable | No |
| Hub Pilot Diameter Inch | 3.345 |
| Stud Quantity | 5 |
| Flange Diameter Inch | 4.672 |
| Material | Steel |
| Product Condition | New |
| Wheel Stud Size MM | M14 x 1.5 |
| Wiring Harness Included | No |
| Spline Quantity | 38 |
| Gasket or Seal Included | Yes |
| Spline Quantity | 38 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Flange Shape | Trapezoid |
| Flange Offset | 1.533 IN |
| Flange Diameter | 4.672 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105028 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00190037326843 |
Part Interchanges
Fits Vehicles
- Audi RS4 (2002, 2007-2008)
- Audi RS6 (2003-2004)
- Audi S6 (2002-2004, 2007-2008)
- Audi S4 (2002, 2004-2009)
- Audi A4 Quattro (2002-2009)
- Audi A4 (2002-2009)
- Audi S8 (2001-2003, 2007-2008)
