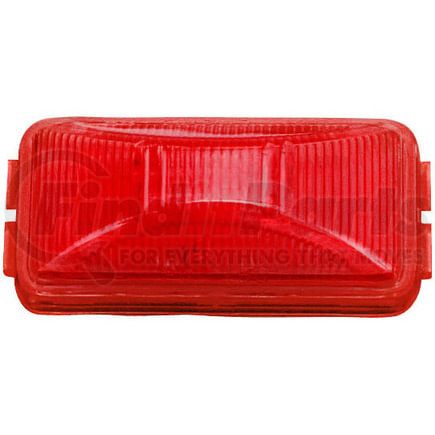

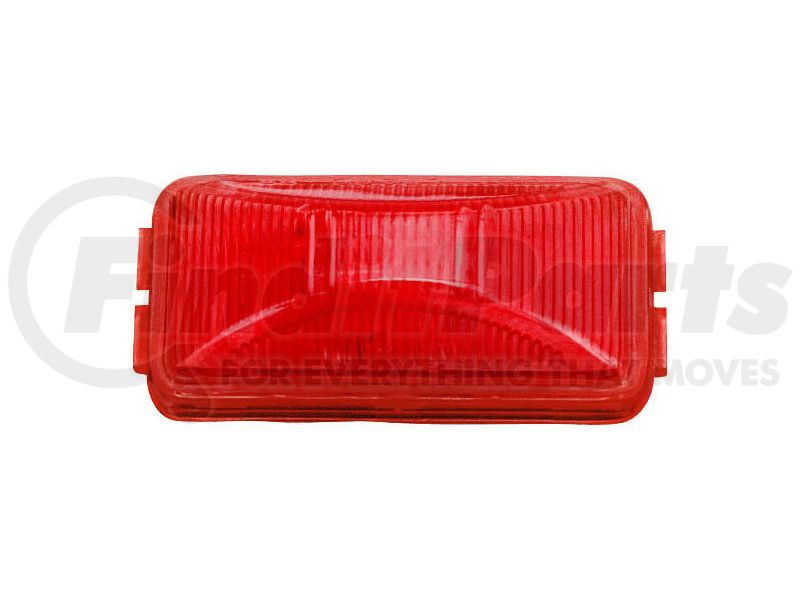

Peterson Lighting M150R - Incandescent Marker/ Clearance, PC-Rated, Rectangular, 2.48"X1.20", red, bulk pack
- Part Number
- M150R
- Manufacturer
- PETERSON LIGHTING
- Description
-
Incandescent Marker/ Clearance, PC-Rated, Rectangular, 2.48"X1.20", red, bulk pack
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
PETERSON LIGHTING part description
150 Clearance and Side Marker Light
Peterson Lighting Clearance & Side Marker Light
The Peterson Lighting clearance & side marker light is designed to alert other drivers to a larger truck's presence on the road. When mounted properly, it functions as a combination clearance and side marker light, allowing the driver to see another vehicle that is approaching at an angle at night.
Features & Benefits
- Designed with a 15,000-hour long life bulb
- With lens that is welded to the housing to form a single unit
- Requires a mounting bracket and electrical connector in order to be installed
- A premium replacement clearance/side marker light at a competitive price
Product Description

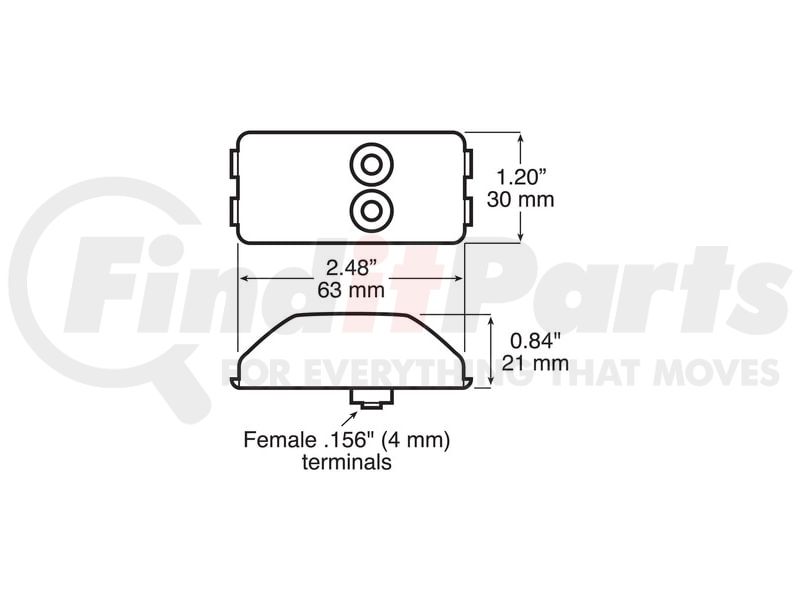

INCANDESCENT MARKER/CLEARANCE, PC, RECTANGULAR, 2.48"X1.20"
Features & Benefits
- 2636 kit includes light, 150-18 grommet, and 142-49 plug.
- Assembled in USA.
- Available in retail-friendly Viz Pack.
- Features 15,000-hour-rated, long-life bulb and female terminals.
- For an LED alternative, consider Peterson M203R
- Functions as side marker or clearance light and may be used as a combination clearance and side marker when properly mounted.
- LED version available.
- Lens is welded to housing to form single unit.
- Long life bulb.
- Mounting bracket and electrical connector required to complete installation; see mounting and electrical accessories for details.
- PC Rated.
- Recommended for marine trailer use.
- See 203 series LED version on Peterson Master Catalog page 70.
- Viz Pack kits include light, 150-102 bracket, lead wire and screws.
12" 2-wire plug - mfg. pack - B142-51 - std qty 100
Product Attributes
| Bulb Technology | incandescent |
| Bulb/diode Count | 1 |
| California Prop65 Required | Y |
| Container Type | bulk pack |
| Filament Quantity | 1 |
| Ground Type | plug |
| Height | 1.2 in |
| Integral Reflex | N |
| Length | 2.48 in |
| Lens Color | red |
| Light Color | red |
| Mounting Type | grommet + surface |
| Pc Rated | Y |
| Regulatory Compliance | DOT |
| Removable Lens | N |
| Replaceable Bulb | N |
| Shape | rectangular |
| Submersible | Y |
| Voltage | 12 Volts |
| Width | 0.84 in |
Additional Information
| Warranty Special | See full warranty terms: https://pmlights.com/warranty |
| Warranty Special UOM | TX |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8512202000 |
| UPC | 00044464929002 |
| VMRS Code | 034004021 |
Part Interchanges
PETERSON LIGHTING M150R Cross Reference
We have 5 alternatives for the M150R by PETERSON LIGHTING:
Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
