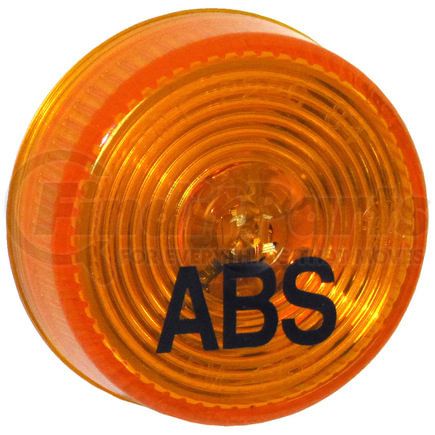

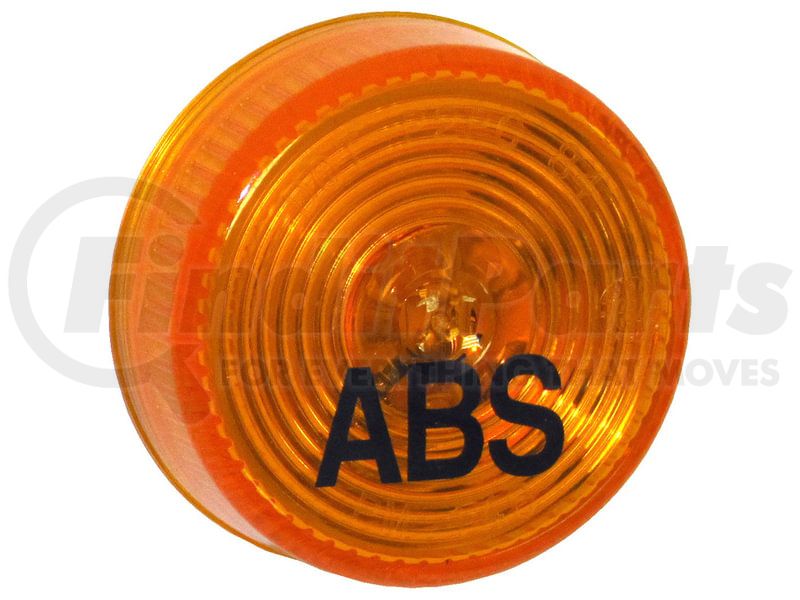

Peterson Lighting M146ABS - Clearance/ Side Marker Light, PC-Rated, Amber w/ ABS, 2", amber, bulk pack
- Part Number
- M146ABS
- Manufacturer
- PETERSON LIGHTING
- Description
-
Clearance/ Side Marker Light, PC-Rated, Amber w/ ABS, 2", amber, bulk pack
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
PETERSON LIGHTING part description
146 2" Clearance and Side Marker Light
Features & Benefits
- Functions as side marker or clearance light
- May be used as combination side marker and clearance light when mounted at a 45° angle
- Features sealed lens and housing; 146F and 146S lights are sonic welded to flange to form a single unit
- 146 light comes without flange for use with rubber grommet
- Requires 2-wire plug to complete installation
- Features 15,000-hour long life bulb
- Kit includes 146 light, 146-18 grommet and 142-49 plug
- ABS warning indicator lamp version available
- See mounting accessory section for additional mounting options
- Available in amber or red.
Product Description
2" PC-RATED CLEARANCE/SIDE MARKER LIGHT, AMBER W/ABS
Features & Benefits
- Assembled in USA.
- Features 15,000-hour-rated long-life bulb.
- Features sealed lens and housing.
- For an LED alternative, consider Peterson M198ABS
- LED version available.
- Requires 2-wire plug and mounting grommet to complete installation.
- See mounting accessory section for additional mounting options.
grommet - mfg. pack - B146-18 - std qty 100
Product Attributes
| Bulb Technology | incandescent |
| Bulb Type | Incandescent |
| Bulb/diode Count | 1 |
| California Prop65 Required | Y |
| Container Type | bulk pack |

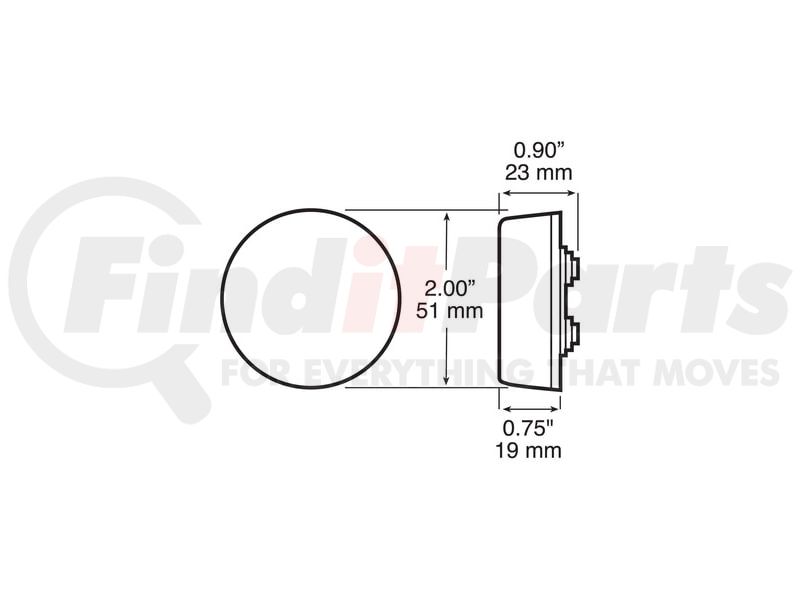

| Diameter | 2 IN |
| Filament Quantity | 1 |
| Ground Type | plug |
| Height | 2 in |
| Integral Reflex | N |
| Length | 0.9 in |
| Lens Color | amber |
| Light Color | amber |
| Mounting Type | grommet |
| Regulatory Compliance | DOT |
| Removable Lens | N |
| Replaceable Bulb | N |
| Shape | 2-inch round |
| Submersible | Y |
| Termination | PL10 |
| Voltage | 12 Volts |
| Width | 2 in |
Additional Information
| Warranty Special | See full warranty terms: https://pmlights.com/warranty |
| Warranty Special UOM | TX |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8512204000 |
| UPC | 00044464964324 |
| VMRS Code | 003001235 |
Part Interchanges
PETERSON LIGHTING M146ABS Cross Reference
We have 4 alternatives for the M146ABS by PETERSON LIGHTING:
Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
