Name: Peterson Lighting 168R LED CLR
SKU: 168r
Price: 6.99 USD
Availability: InStock

PETERSON LIGHTING part description

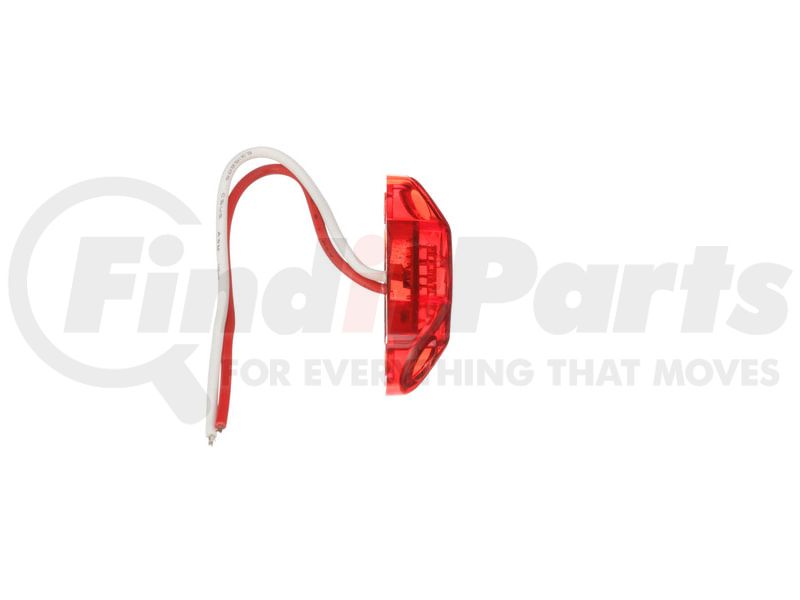

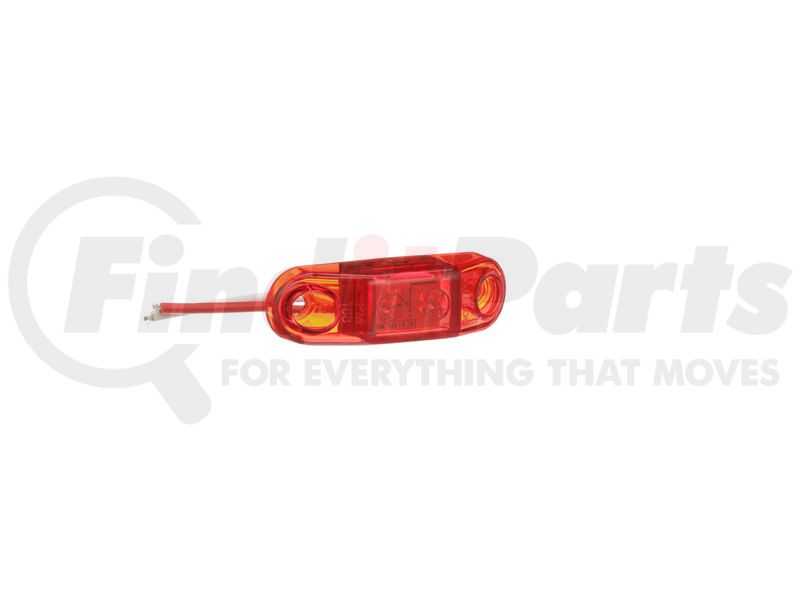

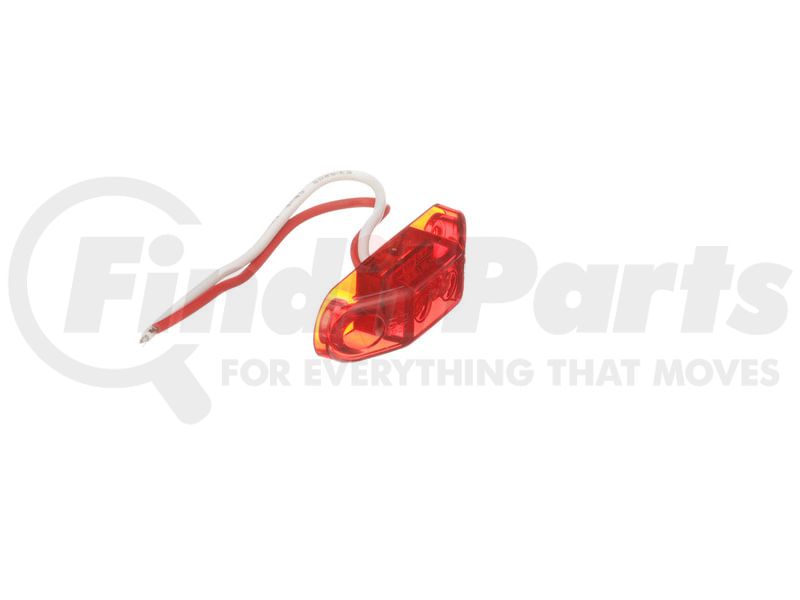

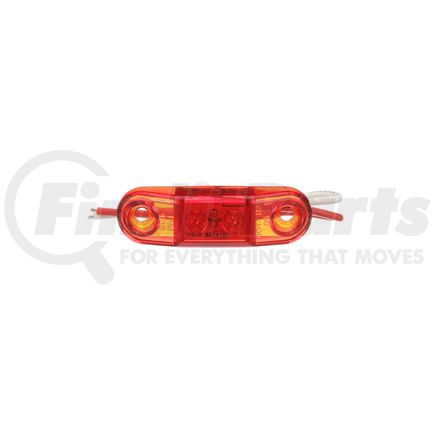

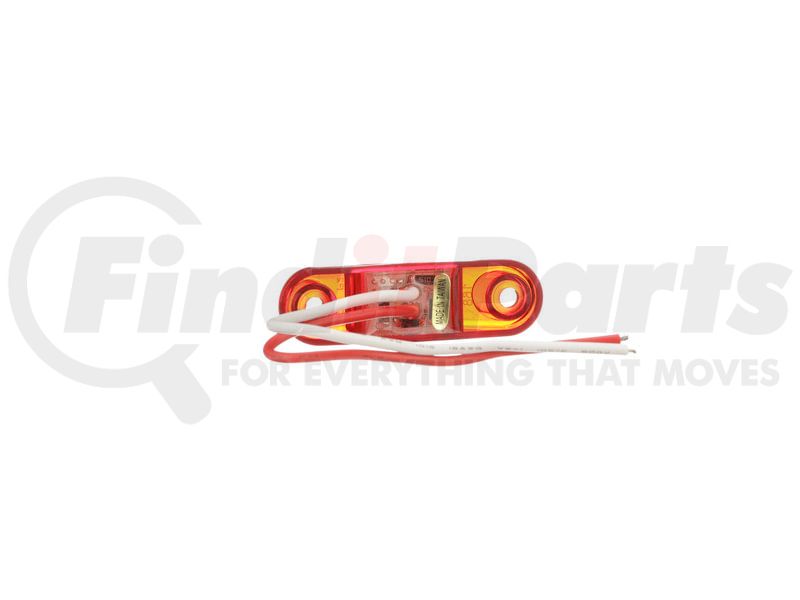

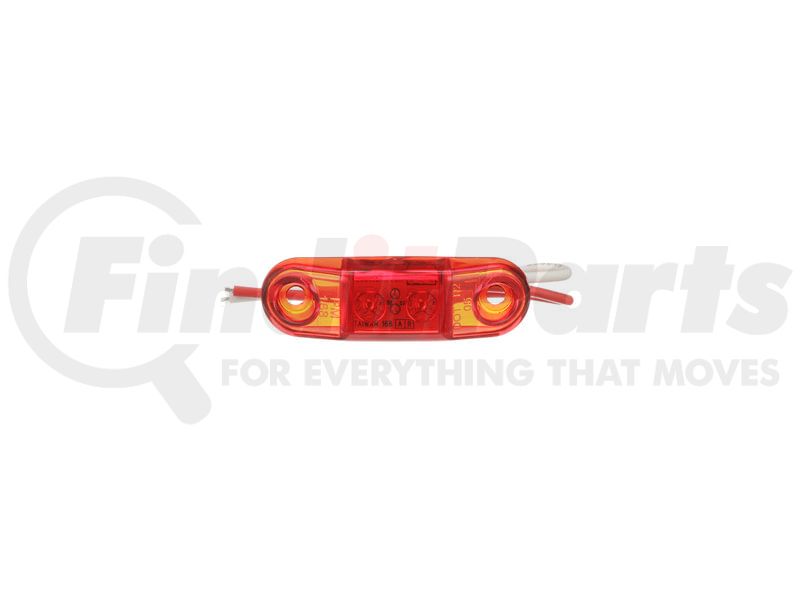

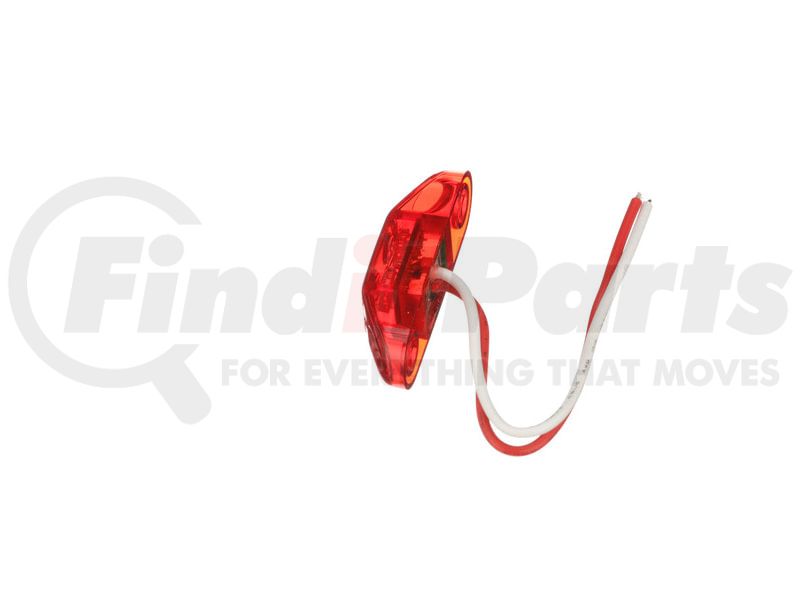

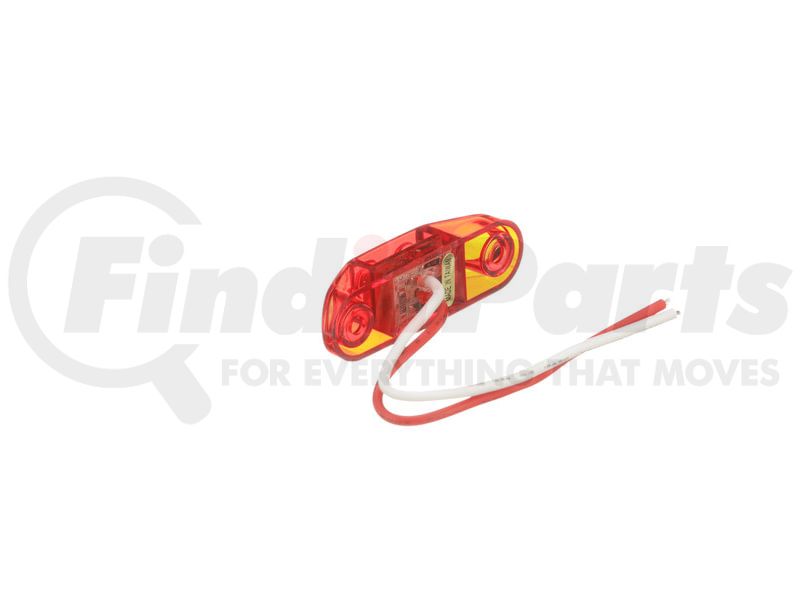

168A/R Series Piranha® LED Slim-Line Mini Clearance and Side Marker Lights

Peterson Lighting Piranha® LED Slim-Line Mini Clearance & Side Marker Light

The Peterson Lighting Piranha® LED slim-line mini clearance & side marker light offers improved trucking safety as it alerts other road users of your vehicle’s location, position, and dimension in poor visibility situations. It is also a perfect way to add a unique style to your rig while keeping it safe on the road.

Features & Benefits

A 2-diode LED light that works either as a side marker or a clearance light
Sealed, filament-free design eliminates damage from shock and road vibration
Hardwired connectors with separate lead and ground wires allow for mounting various types of surfaces
Easily mounts on 1 15/16” centers
Product’s operating range is 9 to 16 volts
Tested for durability with a 100,000-hour rated operating life
Manufactured to meet the highest quality and safety standards

Product Description

LED MARKER/CLEARANCE, P2, OBLONG, 2.6"X0.75"

Features & Benefits

Clearance / Side Marker Light, 12 Volt
Hardwired with separate 5.75" lead and ground wires. (4484 series features 9.5" long lead wires.)
Mounts on 1-15 / 16" centers; optional 168-09 bracket mounts on either 1-15 / 16" or 1-1 / 8" centers.
See clear lens versions on Peterson LED Catalog page 46.
XA / XR versions include 168-10 chrome bezel, also available separately.

alum. brush guard kit - bulk pack - 100 - std qty

Product Attributes

Bulb Technology	LED
Bulb/diode Count	2
California Prop65 Required	Y
Container Type	poly bag
Height	0.75 in
Integral Reflex	N
Length	2.75 in
Lens Color	red
Light Color	red
Maximum Voltage	16 Volts
Minimum Voltage	9 Volts
Mounting Centers	1.94 IN
Mounting Type	surface
Multi-volt	N
Pc Rated	N
Regulatory Compliance	DOT
Shape	oval
Submersible	Y
Voltage	12 Volts
Width	0.63 in

Additional Information

Warranty Special	LIMITED LIFETIME WARRANTY See full warranty terms: https://pmlights.com/warranty
Warranty Special UOM	TX
Country of Origin (Primary)	TW
Harmonized Tariff Code (Schedule B)	8512202000
UPC	00044464982847
VMRS Code	034004253

Part Interchanges

Grote 47012

PETERSON LIGHTING 168R Cross Reference

We have 3 alternatives for the 168R by PETERSON LIGHTING:

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
