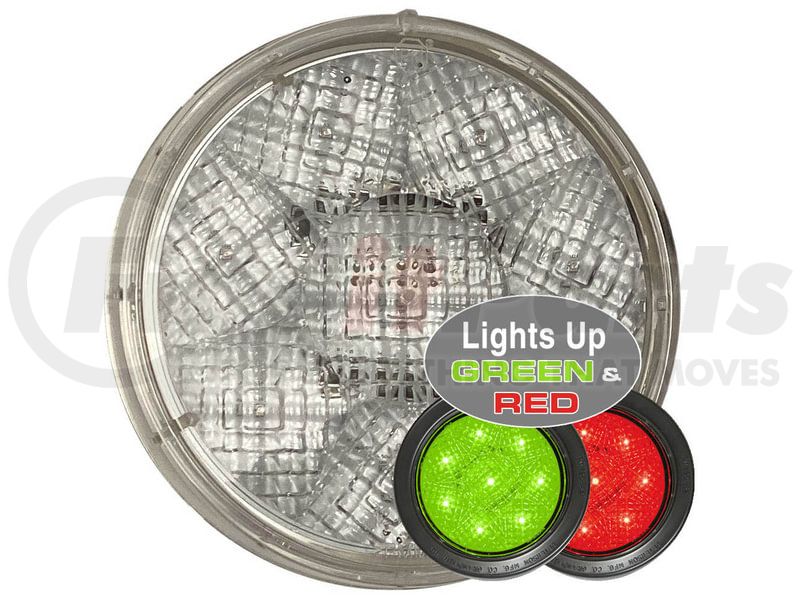

Peterson Lighting 1217G-R - LED Loading Dock Light, Round, Red & Green Bi-Color, 4", red + green, box
- Part Number
- 1217G-R
- Manufacturer
- PETERSON LIGHTING
- Description
-
LED Loading Dock Light, Round, Red & Green Bi-Color, 4", red + green, box
details
$1,09470
Package Price for 30 Units
@ $36.49 per unit
In stock
limited availability at this price!
PETERSON LIGHTING part description
1217G-R LED Traffic Indicator/Loading Dock Light
Peterson Lighting LED Traffic Indicator/Loading Dock Light
Specifically designed for use in loading bays, the Peterson Lighting LED traffic indicator/loading dock light ensures these places are safe for employees loading and unloading cargo. It is also ideal for use in car parks, barriers, and gates.
Features & Benefits
- With a dual-color diode that provides red and green light in a single lens
- Comes with a 4-meter co-extruded three-core cable
- Operating range is 18 to 28 volts
- Boxed individually and has an IP67 ingress protection rating
- Must use a 426-18 grommet or 417-1 bracket in order to be installed
- Precisely-engineered using high-quality components for maximum reliability
Product Description
LED LOADING DOCK LIGHT, ROUND, RED & GREEN BI-COLOR, 4"
Features & Benefits
- Traffic Indicator / Loading Dock Light
- Dual-color diodes provide red and green indicators in a single lens.
- Ideal for loading bays, car parks, barriers and gates.
- Hardwired design has 4 meter, co-extruded, three-core cable.
- 18–28 volt operating range.
- Certified to meet IP67 ingress protection rating.
- Installation requires grommet or 417-1 bracket, available separately.
surface mount bracket - poly bag - 417-1 - std qty 40
Product Attributes
Bulb Technology | LED |
Bulb/diode Count | 8 |
California Prop65 Required | Y |
Coil Cord | N |
Container Type | box |
Diameter | 4.25 IN |
Exterior Use | Y |
Height | 4.25 in |
Integral Switch | N |
Length | 4.25 in |
Lens Color | red + green |
Light Color | red + green |
Maximum Voltage | 28 Volts |
Minimum Voltage | 18 Volts |
Mounting Type | grommet |
Multi-volt | N |
Shape | round |
Submersible | N |
Termination | stripped wire |
Voltage | 24 Volts |
Width | 0.75 in |
Additional Information
Warranty Special | See full warranty terms: https://pmlights.com/warranty |
Warranty Special UOM | TX |
Warranty Time | 3 |
Warranty Time UOM | YR |
Country of Origin (Primary) | CN |
Harmonized Tariff Code (Schedule B) | 8512202000 |
UPC | 00044464986821 |
VMRS Code | 034004450 |
Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
