(888) 312-8812 Login SignupMOOG 475 Universal Joint
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

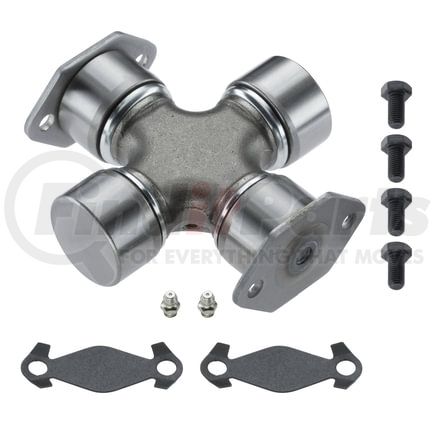

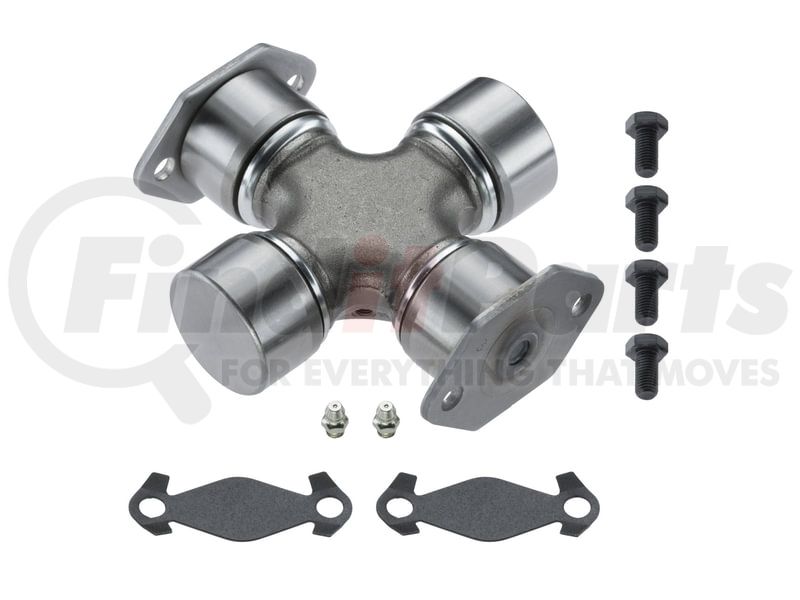

MOOG 475 Part Description
Manufacturer
Product Description
Greaseable Premium Universal Joint
Application Summary
Ford, GM & IH Trucks; Allis-Chalmers, Case, Cat, & Versatile Off-highway Equipment (1610 Series "Half Round")
Features & Benefits
- BUILT TO LAST -- Rugged design specifically engineered for fleets, off-highway and commercial vehicles
- STRONG AND DURABLE -- Bearing cups are cold-formed, case-hardened and precision ground for strength and durability
- KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
- GREASEABLE DESIGN -- Drilled and tapped grease fitting holes for easy servicing and cross trunnions with large grease reservoirs with radial grease channels for grease distribution
- INHIBITS PREMATURE WEAR -- Cross trunnions ground to a 15-25 RMS finish for a smooth surface free of microscopic grooves that can cause premature wear
- RELIABLE PERFORMANCE -- Internal anti-drainback valve integrated into thrust washer controls lubrication flow and prevents dry startup
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
Engineered for long-lasting durability, the National® taper bearing cone delivers optimal performance.
National® Oil Seals & Bearings offer a full line of premium oil seals and bearings.
- Premium bearing design matches OEM specifications
- Precision manufactured using premium-grade steel for outstanding durability and performance
- Crowned raceways and rollers to ensure even load distribution for maximum life
- Industry leading coverage
- Professional technicians know they can depend on National
MOOG 475 Specifications
Product Attributes
| Length Axis 1 | 5.312 IN |
| Length Axis 1 | 134.9 MM |
| Length Axis 2 | 5.312 IN |
| Length Axis 2 | 134.9 MM |
| Bearing Cap Type | 2 Welded Plate & 2 Plain Round Bearings |
| Greaseable | YES |
| Bearing Cap Axis 2 Diameter | 1.875 IN |
| Bearing Cap Axis 2 Diameter | 47.6 MM |
| Bearing Cap Axis 1 Diameter | 1.875 IN |
| Bearing Cap Axis 1 Diameter | 47.6 MM |
| Bearing Type A | Round Plain |
| Bearing Type B | Round Welded Plate |
| Image | UJoint_2Welded_2Plain.tif |
| Length Measurement A | Outside of Bearing To Outside of Bearing |
| Length Measurement B | Inside of Welded Plate to Inside of Welded Plate |
| LUBE FITTING LOCATION | Two regular lube fittings in cross |
| OE Series | Spicer 1610 |
| Part Description | Universal Joint |
| U-Joint Identification | 2 Welded Plate & 2 Plain Round Bearings |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708991510 |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00080066608945 |
MOOG 475 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45U2325 |
| AUTOPAR | A-438X |
| Autopar | 2300558, 42791, 5438X |
| BorgWarner | 114438 |
| British Leyland | 279HR |
| Chicago Rawhide | 28438X, 4-2791 |
| DANA | 5-423X, 5-674X, 5-777X |
| GMB | 230-0558, 42791, 2300558 |
| General Motors | 15619081 |
| Neapco OE Series | 28438X, 4-2791 |
| Perfect Circle | 438 |
| SKF | 28438X, 4-2791 |
| Spicer | 5-438X, 5610X |
| TRW Steering and Suspension Parts | 20347 |
