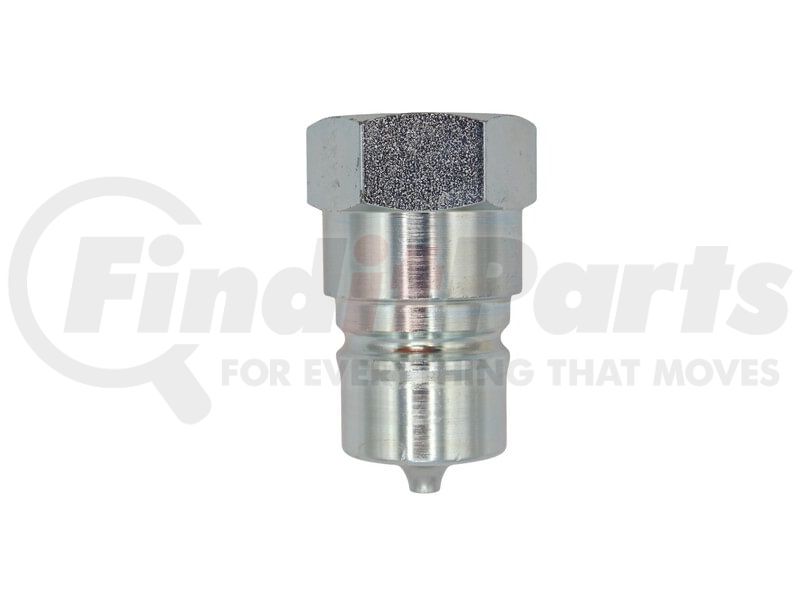

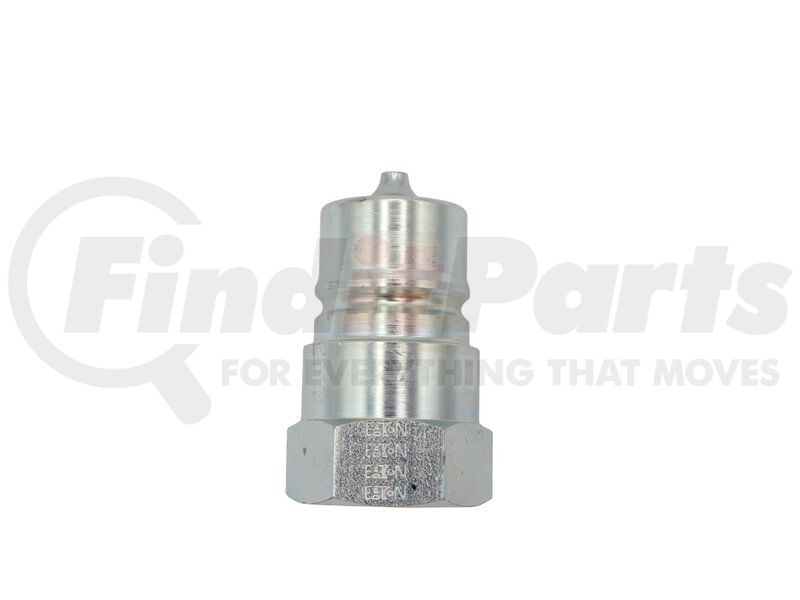

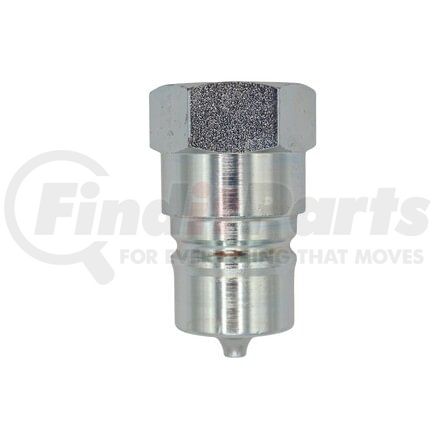

Aeroquip 5602-12-12S - Hansen and Gromelle Coupling - Coupling, FD56male Half Pipe
$2099
MSRP: $32.85
Save: $11.86
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
AEROQUIP part description
| A in | 2.55 |
| Air Inclusion (cc. max) | 10 |
| Coupling Size | 12 |
| Coupling Type | Male |
| Description | Female NPT, Valve |
| Dust Cap (Viton) | 5657-12 |
| Dust Plug (Viton) | 5659-12 |
| Family | 5600 Series |
| Fig. | 1 |
| Fluid Loss (cc. max) | 8.2 |
| Hex1 (in) | 1.38 |
| Max. Operating Pressure (Connected)- Hydraulic (ps | 4000 |
| Min. Burst Pressure- Connected (psi) | 12000 |
| Port/Tube Outside Diameter Size | 12 |
| Rated Flow (LPM) | 106 |
| Rated Flow (gpm) | 28 |
| Repair Kit-Part number (Buna-N) | FF082-12 |
| Repair Kit-Part number (EPR) | FF093-12 |
| Repair Kit-Part number (Viton) | FF092-12 |
| Sub-Title | ISO 7241/1 Series A Interchange |
| Thread (P) | 41702 |
| Type | Female NPT |
| Vacuum (Connected only ) (in./Hg) | 28 |
The Eaton Quick Disconnect Couplings product line features extensive breadth and depth, market leading product performance, and support from a global manufacturing and service footprint. Eaton offers a wide variety of different quick disconnect coupling products that exhibit various certifications categorized as pneumatic, hydraulic, or specialty. In the hydraulic product line, Eaton offers the ISO A line of Quick Disconnect Couplings.
Features & Benefits
- Meets dimensional requirements to ISO standard 7241-1Series A
- Self-sealing poppet valve
- Minimum pressure drop
- Available in standard seal materials including nitrile, EPR, and FKM
- Available in 304 stainless steel and carbon steel
AEROQUIP 5602-12-12S Cross Reference
We have 1 alternatives for the 5602-12-12S by AEROQUIP:
