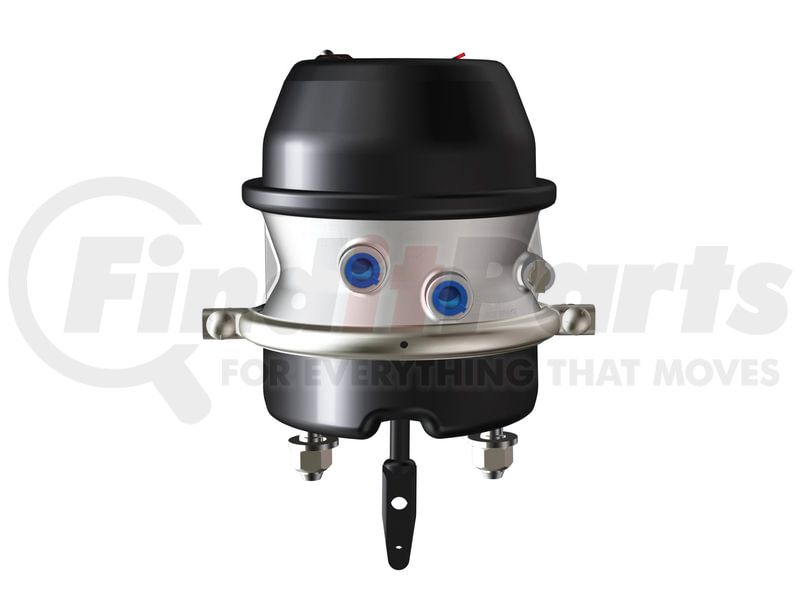

MGM Brakes 3436951 - Air Brake Chamber - Combination, 2.25" Welded Yoke
- Part Number
- 3436951
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - Combination, 2.25" Welded Yoke
details
$36549
MSRP: $421.36
Save: $55.87
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Port Size: 3/8-18 NPTF
Welded Yoke
Stroke (in.): 3.00
Service Size: 36
Spring Size: 36
Features & Benefits
- Tamper Resistant Design
- Molded Nitrile Rubber Push-Rod Air Seal
- Center Hole Shield
- Externally Stored Release Bolt
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- 360 Aluminum Center Case
- "Long Life" Power Spring
- Epoxy Coated Return Spring
- Weatherseal Plug
- Heavy-Duty Steel Non-Pressure Chamber (8-Gauge Standard on Type 3030 & 3060 Aftermarket Models) (6-Gauge Standard on Type 36 Models)
- Stroke Alert
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- External Breather Tube
- Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only
Technical Data
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 30.8 lb (14.0 kg) |
| Weight lb (kg) Single | 20.2 lb (9.2 kg) |
| A | 11.13" (282.7 mm) |
| B | 8.38" (212.9 mm) |
| C | 9.25" (235.0 mm) |
| D | 9.18" (233.2 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC |
| Inlets | 3/8" - 18 NPTF |
| Y | 2.25" |
Replacement Parts
| 1 | Kit -NP Chamber (a) | 9015914 |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216036 |
| 4 | Diaprhagm | 8017836 |
| 5 | Kit -Push-Rod Assembly (a) SAE w/ Welded Yoke | 9075007 |
| 6 | Return Spring | 8068012 |
| 7 | Kit -Center Hole Shield | 9065002 |
| 8 | NP Chamber Assembly (a) | 9015262 |
| 9 | Kit -Nuts & Washers SAE | 9002001 |
| 10 | Hex Nut -Yoke SAE | N/A |
| 11 | Kit -Weatherseal Plug | 9019006 |
| 12 | Kit -Release Bolt | 9007009 |
| 13 | Kit -Breather Tube | 9081001 |
| 14 | Kit -Piggyback Plus SAE | 3436008 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
Product Description
Double Diaphragm Brake Chamber
Features & Benefits
- Tamper Resistant
- Externally Stored Release Bolt
- Epoxy-Coated Head
- 360 Aluminum Center Case
- Long Life Power Spring
- Weatherseal Plug
- Heavy-Duty Nylon Reinforced Diaphragm (Neoprene Optional)
- Breather Tube
- Composite Guide
Product Attributes
| Breather Tube | Breather Tube |
| Chamber Type | Double Diaphragm Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.660 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 36 |
| Service Size | 36 |
| Stroke | 3.00 IN |
| Welded Yoke | Welded Yoke |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004000 |
