Name: Stemco 307-0713 GUARDIAN SEAL
SKU: 3070713
Price: 33.49 USD
Availability: InStock

STEMCO part description

Product Description

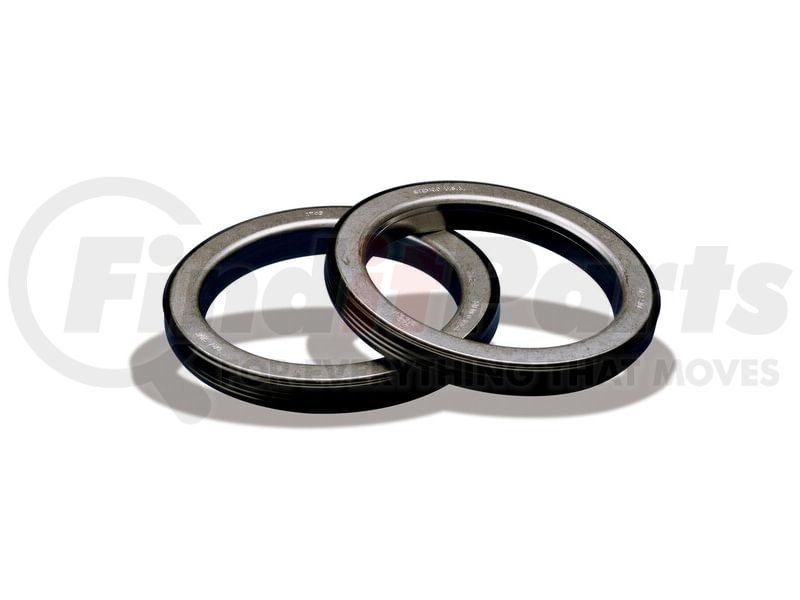

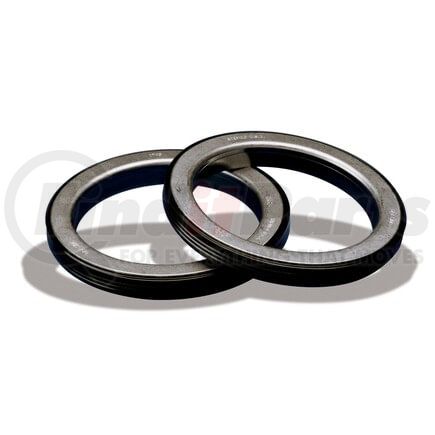

Wheel Hub Seal - Guardian Hp Seal

Application Summary

19,000# Trailer Axle Standard Forge, Dana, Meritor, Eaton

Product Attributes

Bore Diameter	5.750 IN
GASKET NUMBER	330-3013
HUB CAP WITH GASKET	340-4013
INNER BEARING CONE	663
INNER BEARING CUP	653
INSTALL HANDLE/BODY	555-0001
Notes	Do not use on early hubs and wheels that have seal bore diameter greater than 5.758".
OUTER BEARING CONE	HM212049
OUTER BEARING CUP	553X
Seal Type	E7
SHOULDER OUTER DIAMETER	4 .000 IN
SPINDLE SHOULDER OUTER DIAMETER	4 IN
UNIVERSAL AXLE TOOL HEAD	555-5100
Width	0.604 in
Bore Diameter	5.750
SHOULDER OUTER DIAMETER	4
SPINDLE SHOULDER OUTER DIAMETER	4
Width	0.604

Additional Information

Harmonized Tariff Code (HTS)	4016931050
UPC	00703832129771
VMRS Code	018004001

Part Interchanges

STEMCO® is a recognized global leader in manufacturing and supplying a comprehensive line of high-performance systems and components to the commercial vehicle industry. Its wide range of products includes wheel-end components, such as fasteners, hubcaps, bearings, seals, and mileage counters, and brake parts, which include brake drums, brake pads, and adjusters. It also offers suspension products like spring pins, king pin kits, polyurethane suspensions, tie rod assemblies, and mount and blocking components. All these products are made to the highest quality and safety standards to ensure superior performance and maximum durability even when used in the harshest of conditions. STEMCO is ISO-9001:2015 certified.
