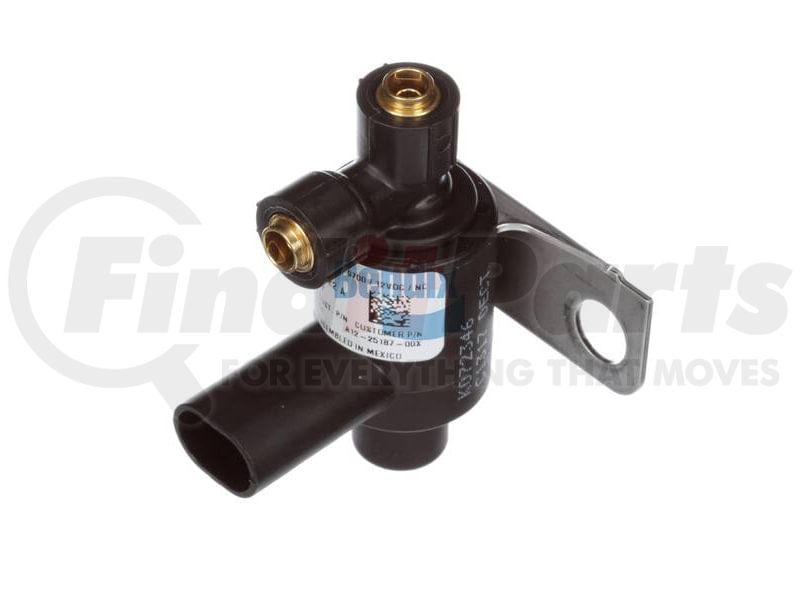

Bendix K073073 - Engine Cooling Fan Clutch Solenoid Valve - Right Hand Side, Normally Closed
$12349
MSRP: $273.74
Save: $150.25
In stock
limited availability at this price!
. Learn more
BENDIX part description
| Mounting: | Ø .440 IN |
| Connector Type: | Metri-Pack 150 Series 2-Way Sealed Connector (Male) |
| Product Type: | Stand-Alone |
| Operation: | NC - Normally Closed (Black) |
| Supply Port 1: | 1/4 PTC |
| Delivery Port: | 1/4 PTC |
| Operating Voltage Range: | 9 VDC -16 VDC |
| Operating Pressure Range: | 60-150 PSI |
| Inlet Orifice: | Ø .045 IN |
| Exhaust Orifice: | Ø .047 IN |
| Flyback Diode: | 1N4004 |
| Resistance: | 38 ± 2 Ohms (at 70°F) |
| Maximum Operating Temperature: | 221 °F (105 °C) |
| Minimum Operating Temperature: | -40 °F (-40 °C) |
| Cautionary Notes: | Mount with the exhaust facing in. a downward or horizontal direction. Do not cover or paint exhaust. Exhaust port(s) must have a minimum of 10mm clearance from all obstructions. |
| Bracket Orientation: | Right |
| Product Type | Solenoid |
| Valve Type | FCS-9700 |
Product Description
Fan Clutch Solenoid
Features & Benefits
- Normally closed configuration prevents unnecessary airflow unless an electronic signal activates it
- Right-hand side fitment matches specific vehicle layouts for faster service installation and accurate hose alignment
- Pneumatic control function coordinates with fan clutch timing for responsive cooling during peak engine loads
- Small profile body reduces spatial demand in crowded engine bays while still offering a firm mounting footprint
Courtesy of Bendix – All rights reserved
Bendix Engine Cooling Fan Clutch Solenoid Valve
What’s better than getting consistent airflow when your cooling system needs it most? The Bendix Engine Cooling Fan Clutch Solenoid Valve offers that exact benefit by controlling when the clutch engages based on system temperature and pressure. As a normally closed, right-hand side unit, this solenoid valve stays inactive until power is applied—keeping airflow under control and only activating when necessary. The Bendix K073073’s compact design works well within tight engine compartments, and its connection points match up cleanly with standard pneumatic lines.
Product Attributes
| Gross Weight | 0.159 KG |
| Market Indicator | Aftermarket (New) |
| Net Weight | 0.159 KG |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8481200060 |
| VMRS Code | 042003024 |
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
