Autolite 824 - Autolite 824 Copper Resistor Spark Plug
$451
MSRP: $6.18
Save: $1.67
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
AUTOLITE part description
Product Description

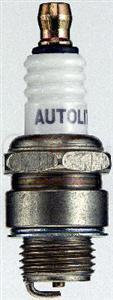

Autolite 824 Copper Resistor Spark Plug
Features & Benefits
- One-Piece terminal stud provides a reliable high voltage electrical connection
- The copper core center electrode aids in thermal control and improves resistance to fouling.
- High alumina multi-rib insulator helps prevent flash-over which can lead to misfires
- Its specially engineered high nickel alloy center and ground electrode provides extended life.
- Heat-fused glass composite resistor center seal provides high performance EMI noise suppression and a 100 percent leak-proof seal
- The high alumina multi-rib ceramic insulator provides thermal conductivity and superior insulation for increased strength.
- Solid copper core center electrode provides optimal thermal and electrical conductivity for better performance in all driving conditions
- Designed with a nickel-plated shell that is corrosion resistant to provide increased durability for extended periods.
- High nickel alloy side electrode resists electrical and chemical wear providing excellent durability
- 2 year limited warranty
Product Attributes
Resistance | 10000 82 |
Ground Electrode Tip Design | Standard |
Ground Electrode Core Material | Nickel |
Electrical Terminal Type | Non-Removable Nut |
Center Electrode Core Material | Copper |
Center Electrode Tip Material | Nickel |
Pre-Gap Size | 0.04 IN |
Ground Electrode Quantity | 1 |
Hex Size | 21 MM |
Seat Type | Tapered |
Reach | 23.8252 MM |
Thread Diameter | 18 MM |
Insulator Material | Ceramic |
Resistor Type | Yes |
Ground Electrode Tip Material | Nickel |
9608 | Standard |
9805 | Short Projection |
Washer Included | No |
Grade Type | Regular |
Hex Size | 13/16 IN |
Manufacturer Heat Range | 10 |
Reach | 0.938 IN |
9459 | Yes |
9507 | Hex |
9746 | No |
Pre-Gap Size | 1.016 MM |
Additional Information
Country of Origin (Primary) | CN |
Harmonized Tariff Code (Schedule B) | 8511100000 |
Warranty Time | 2 |
Warranty Time UOM | YR |
Harmonized Tariff Code (HTS) | 8511100000 |
UPC | 00009100253651 |
UNSPSC | 26101732 |
Part Interchanges
AUTOLITE 824 Cross Reference
We have 6 alternatives for the 824 by AUTOLITE:
