Name: Peterson Lighting 818R-36 LED 36 DI
SKU: 818r36
Price: 52.49 USD
Availability: InStock

PETERSON LIGHTING part description

817R-36/818R-36 Series Piranha® LED 4" Round LED Stop, Turn and Tail Lights, AMP

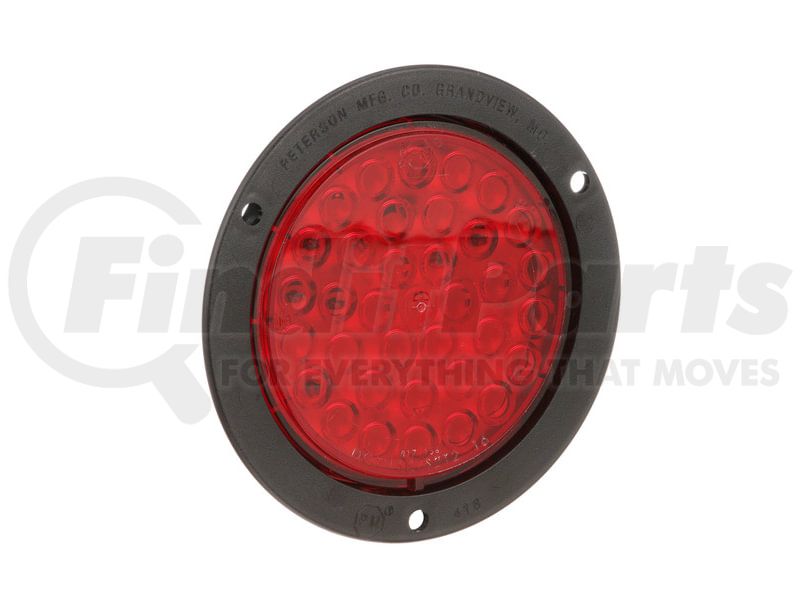

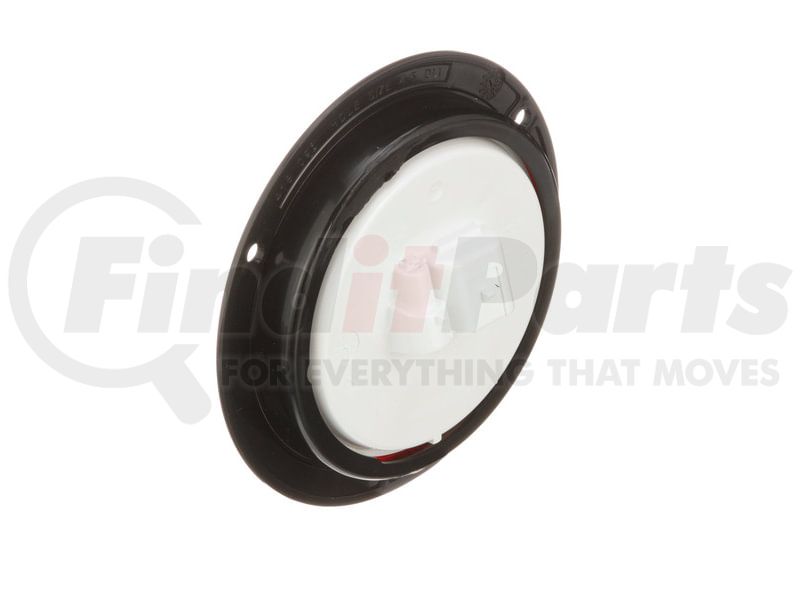

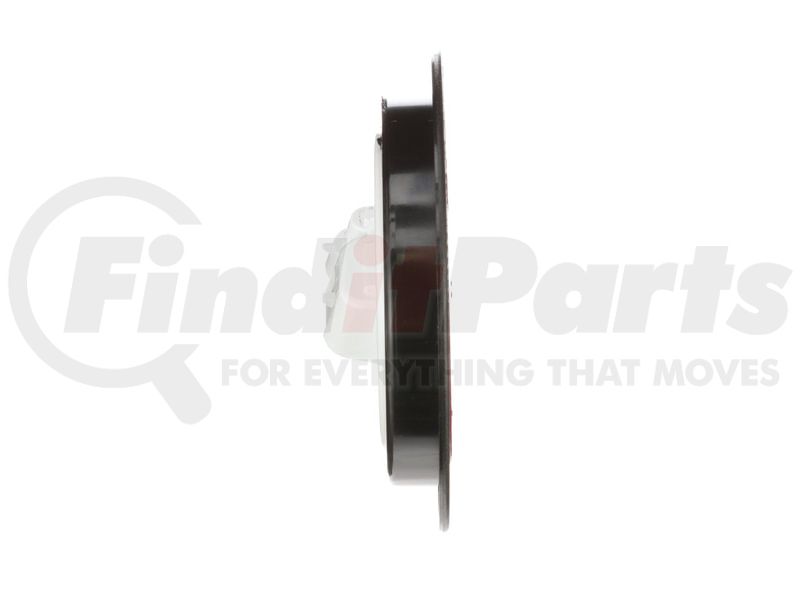

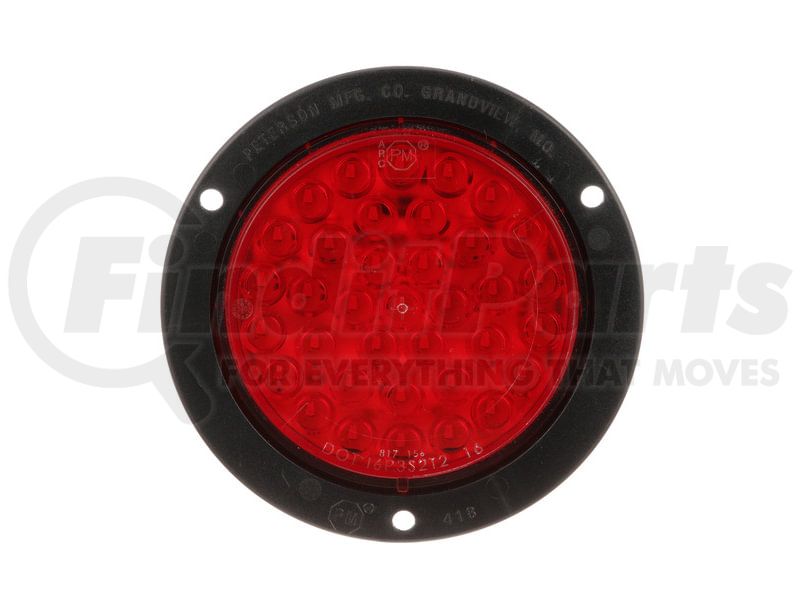

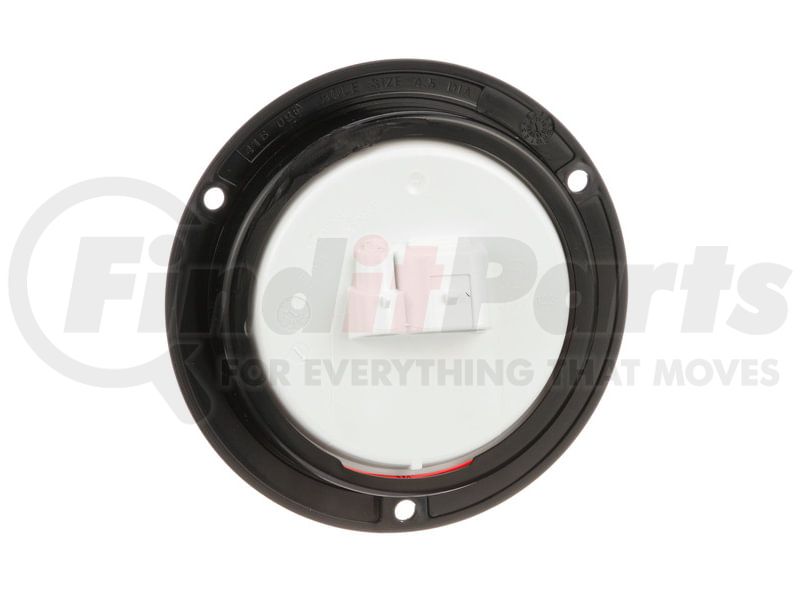

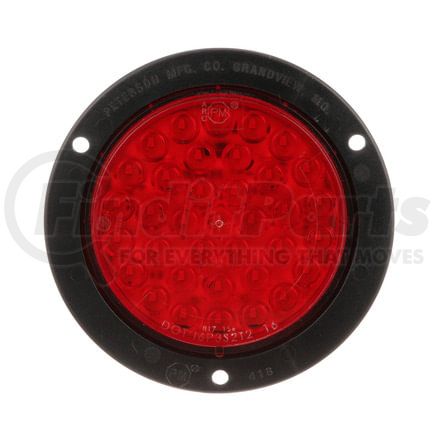

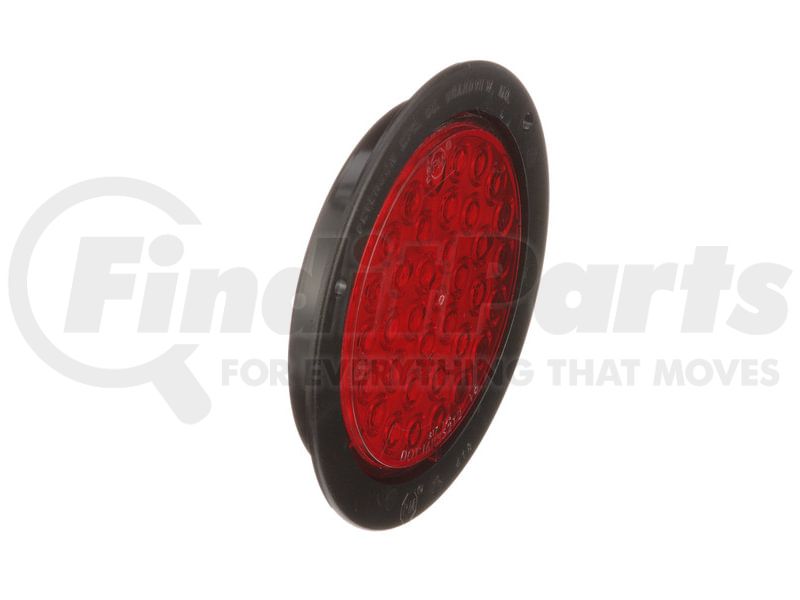

Peterson Lighting Piranha® 4" Round LED Stop, Turn & Tail Light

For enhanced trucking safety, equip your truck with a high-quality Peterson Lighting Piranha® 4" round LED stop, turn & tail light. This product effectively combines all three crucial functions—stop, turn, and tail— into one industry-standard light.

Features & Benefits

An original flange-mount 36-diode light with white diodes behind the red lens
Comes with an AMP-compatible connector and flange that is integrated into the housing to form a single unit
Provides voltage protection and consistent light output over the entire voltage range with its regulated design
Product’s operating range is 9 to 16 volts
Does not have to be “Top” positioned to meet FMVSS 108 requirements
Engineered to meet the needs of any stop tail turn lighting situation

Product Description

LED STOP/TURN/TAIL, ROUND, FLANGE 4" 12V

Features & Benefits

4" Round Stop / Turn / Tail Light
Integral 30° angle silicone-sealed AMP receptacle.
Original 36-diode multi-diode lens look.
See clear lens version on Peterson LED Catalog page 43.
See matching turn signal light on Peterson LED Catalog page 16.
Viz-Pack kits include light, grommet and 817-49 plug.

grommet - bulk pack - B426-18 - std qty 100

Product Attributes

Bulb Technology	LED
Bulb/diode Count	36
California Prop65 Required	Y
Container Type	poly bag
Diameter	4.25 IN
Height	4.25 in
Integral Reflex	N
Length	4.25 in
Lens Color	red
Light Color	red
Maximum Voltage	16 Volts
Minimum Voltage	9 Volts
Mounting Type	grommet
Multi-volt	N
Regulatory Compliance	DOT
Shape	round
Submersible	Y
Termination	AMP
Voltage	12 Volts
Width	1.42 in

Additional Information

Warranty Special	LIMITED LIFETIME WARRANTY See full warranty terms: https://pmlights.com/warranty
Warranty Special UOM	TX
Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8512204000
UPC	00044464997919
VMRS Code	034002059

Part Interchanges

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
