AUTOLITE 2986 Part Description
Manufacturer
Product Description

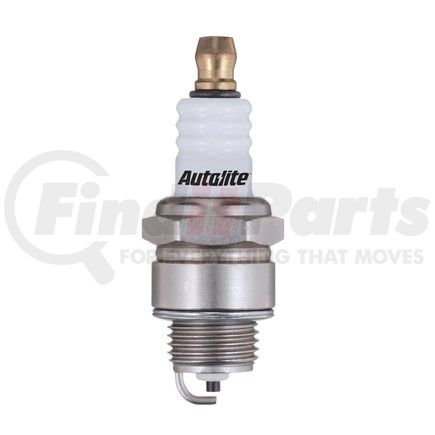

Autolite 2986Copper Resistor Spark Plug
Features & Benefits
- One-Piece terminal stud provides a reliable high voltage electrical connection
- The copper core center electrode aids in thermal control and improves resistance to fouling.
- High alumina multi-rib insulator helps prevent flash-over which can lead to misfires
- Its specially engineered high nickel alloy center and ground electrode provides extended life.
- Heat-fused glass composite resistor center seal provides high performance EMI noise suppression and a 100 percent leak-proof seal
- The high alumina multi-rib ceramic insulator provides thermal conductivity and superior insulation for increased strength.
- Solid copper core center electrode provides optimal thermal and electrical conductivity for better performance in all driving conditions
- Designed with a nickel-plated shell that is corrosion resistant to provide increased durability for extended periods.
- High nickel alloy side electrode resists electrical and chemical wear providing excellent durability
- 2 year limited warranty
AUTOLITE 2986 Specifications
Product Attributes
| Resistance | 5000 82 |
| Ground Electrode Tip Design | Standard |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | 0.025 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 19 MM |
| Seat Type | Flat |
| Reach | 9.4996 MM |
| Thread Diameter | 14 MM |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Ground Electrode Tip Material | Nickel |
| Center Electrode Design | Standard |
| Center Electrode Projection | Mid Projection |
| Washer(s) Included | Yes |
| Grade Type | Regular |
| Hex Size | 3/4 IN |
| Manufacturer Heat Range | 8 |
| Reach | 0.374 IN |
| Skirt | No |
| Hex Type | Hex |
| Indexed | No |
| Pre-Gap Size | 0.635 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Warranty Time | 2 |
| Warranty Time UOM | YR |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00009100268587 |
| UNSPSC | 26101732 |
AUTOLITE 2986 Cross References
| Brand | Part Number |
|---|---|
| Bosch | W240T2, WS8F |
| Champion Spark Plug | 840C, 863, 8631, CJ7Y, CJ8Y, RCJ8Y |
| DENSO Auto Parts | W14MP-U10, W14MPR-U10, W20MP-U |
| Motorcraft | A42NX |
| NGK | BPMR4A, BPMR4A-10, BPMR6A, BPMR6A S25 |
| NGK SPARK PLUGS | BPMR6A, BPMR6A BLYB, BPMR6A S25, BPMR6A SOLID, BPMR6A SOLID S25, 6759, 6726, 1194, 94199, 4972 |
| Torch | L6RTC |
