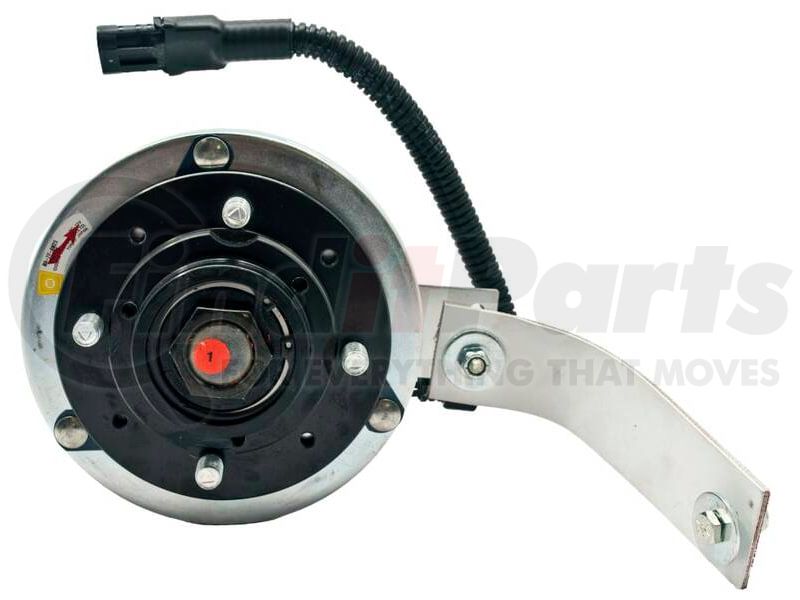

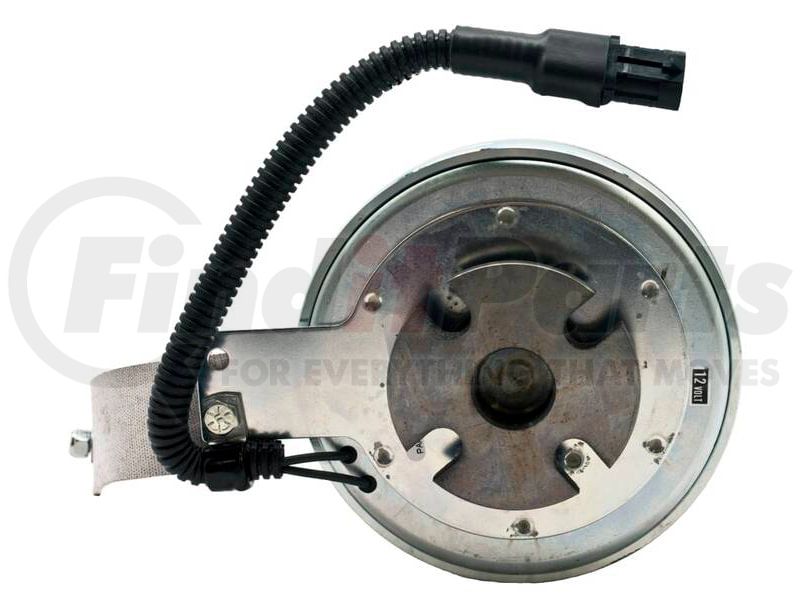

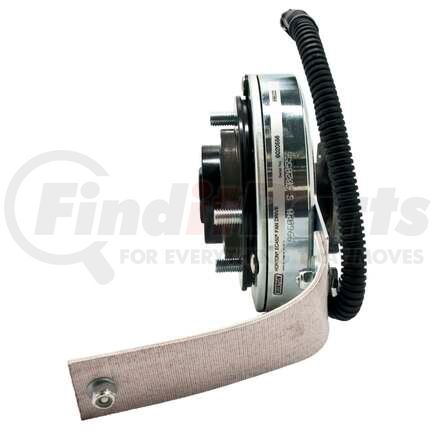

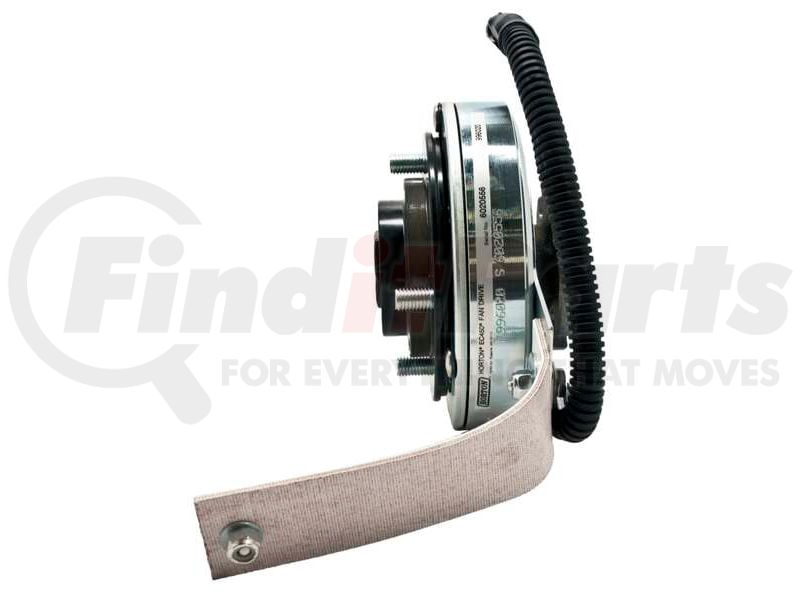

Horton 996020 - Electromagnetic Fan Clutch EC450
$1,02699
MSRP: $1,812.53
Save: $785.54
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
HORTON part description
Product Description
EC450 Fan Clutch
Application Summary
BLUEBIRD, FREIGHTLINER, SISU, OTTOWA, CAPACITY OF TEXAS
Product Attributes
| BASE TO FAN | 2.45 |
| BOLT CIRCLE | 3.81 |
| Fan Pilot | 3.25 |
| FAN PILOT DIAMETER | 3.25 |
| FLANG DIAMETER | 3.2 IN |
| Flange Diameter | 3.2 |
| Heavy Duty | FALSE |
| MOUNTING BOLT CIRCLE | 2.36 |
| MOUNTING FLANGE DIAMETER | 0.25 |
| MOUNTING FLANGE THICKNESS | 0.25 |
| MOUNTING PILOT DIAMETER | 1 |
| Number of Bolts | 4 |
| NUMBER OF FAN MTG BOLTS | 4 M10 x1.5 |
| NUMBER OF SLOTS/HOLES | 4 |
| Overall Length | 3.41 |
| Pilot Depth | 0.74 |
| SLOT WIDTH/THREAD | 0.43 |
| Volts | 12V |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8505200000 |
| Harmonized Tariff Code (HTS) | 8505200000 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 986004 |
| Original Supplier Part Number | 986004 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 2500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
Part Interchanges
HORTON 996020 Cross Reference
We have 2 alternatives for the 996020 by HORTON:
