Name: Peterson Lighting 826R-7 LED STOP/TURN/T
SKU: 826r7
Price: 20.99 USD
Availability: InStock

PETERSON LIGHTING part description

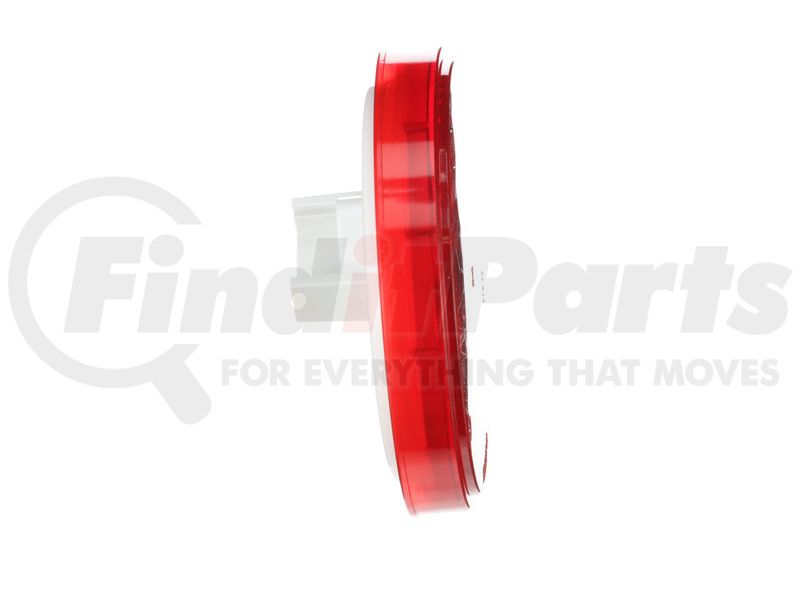

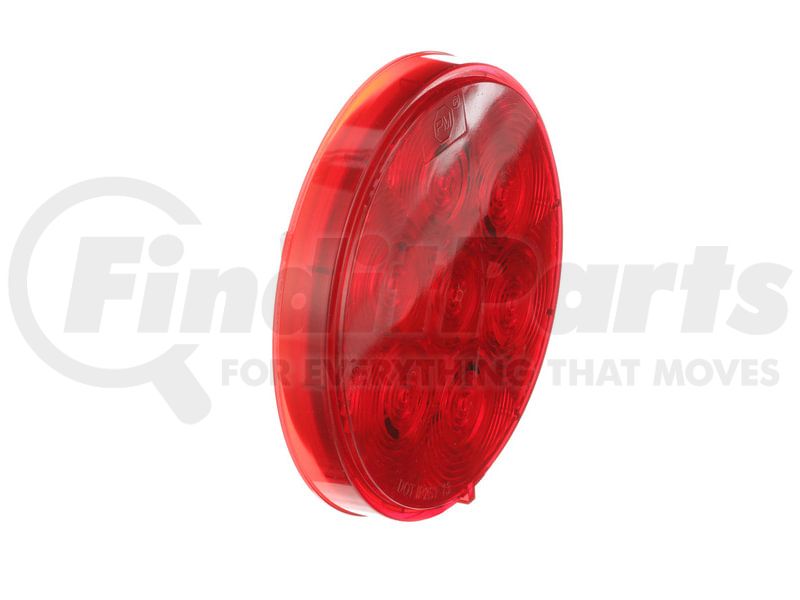

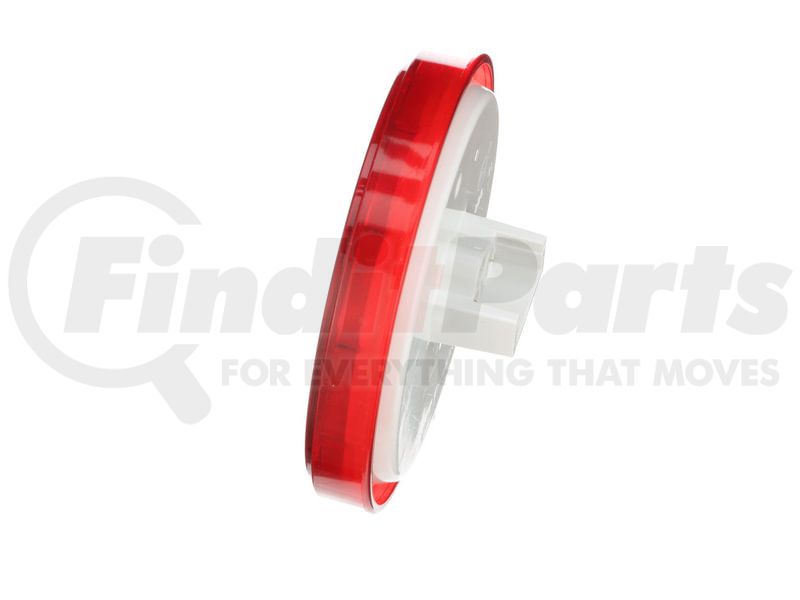

824R-7/826R-7 4" Round LED Stop, Turn and Tail Lights

Peterson Lighting Piranha® 4" Round LED Stop, Turn & Tail Light

For enhanced trucking safety, equip your truck with a high-quality Peterson Lighting Piranha® 4" round LED stop, turn & tail light. This product effectively combines all three crucial functions—stop, turn, and tail— into one industry-standard light.

Features & Benefits

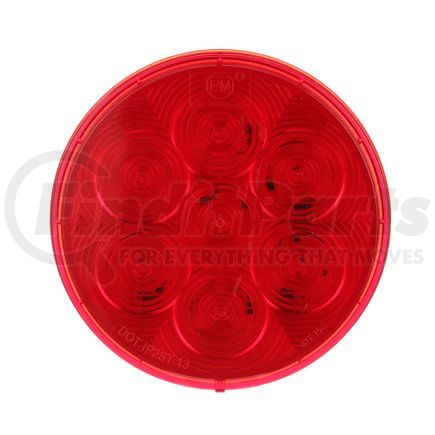

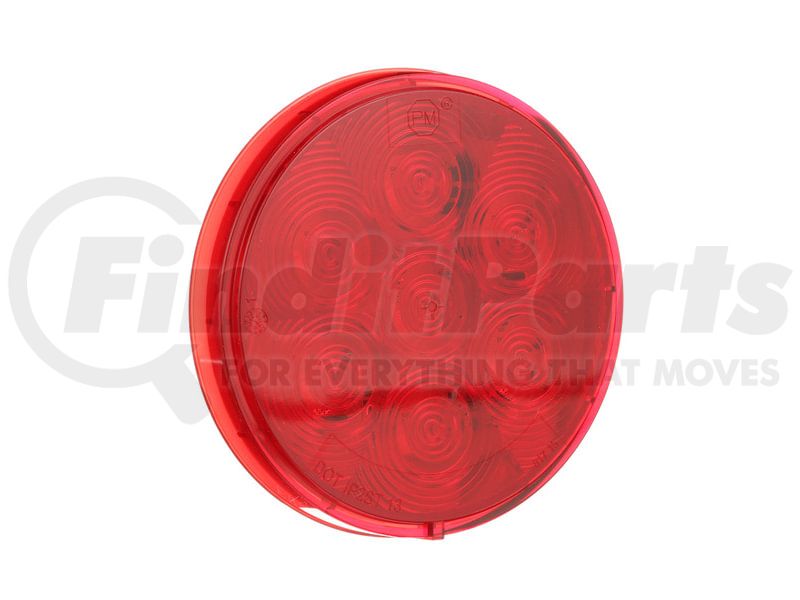

A grommet-mount 7-diode light with white diodes behind the red lens
Comes with an industry-standard PL3 socket that is integrated into the housing
With locking tabs for added plug retention
Product’s operating range is 9 to 16 volts and is made compatible with 431-491 connecting plug
Offers extra moisture protection as it comes with a skirted weld joint
Does not have to be “Top” positioned to meet FMVSS 108 requirements
Engineered to meet the needs of any stop tail turn lighting situation
Durable 4-inch round design with grommet-mount installation provides a secure, vibration-resistant fit for reliable performance in tough road conditions
High-performance LED technology ensures bright, clear signaling for enhanced visibility, reducing the risk of accidents in various driving environments
Compact, rugged construction is designed to withstand harsh weather and heavy-duty use, offering long-lasting reliability for commercial and personal vehicles
Easy-to-install grommet-mount system saves time and effort, allowing quick upgrades to your vehicle's lighting system without specialized tools
Energy-efficient LED operation minimizes power consumption, extending the life of your vehicle's battery and electrical components

Product Description

LED STOP/TURN/TAIL, ROUND, GROMMET-MOUNT, 4"

Features & Benefits

4" Round Stop / Turn / Tail Light
824 kit includes light and 431-491 plug.
826 kit includes light, grommet and 431-491 plug.
PL3 socket integrated into housing.
See matching backup light on Peterson LED Catalog page 47.
See matching turn signal light on Peterson LED Catalog page 14.

grommet - bulk pack - B426-18 - std qty 100

Product Attributes

Bulb Technology	LED
Bulb/diode Count	7
California Prop65 Required	Y
Container Type	poly bag
Diameter	4.25 IN
Height	4.25 in
Integral Reflex	N
Length	4.25 in
Lens Color	red
Light Color	red
Maximum Voltage	16 Volts
Minimum Voltage	9 Volts
Mounting Type	grommet
Multi-volt	N
Regulatory Compliance	DOT
Shape	round
Submersible	Y
Termination	PL3
Voltage	12 Volts
Width	1.49 in

Additional Information

Warranty Special	LIMITED LIFETIME WARRANTY See full warranty terms: https://pmlights.com/warranty
Warranty Special UOM	TX
Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8512204000
UPC	00044464993485
VMRS Code	034002059

Part Interchanges

PETERSON LIGHTING 826R-7 Cross Reference

We have 2 alternatives for the 826R-7 by PETERSON LIGHTING:

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
