Peterson Lighting 197KA - LED Marker/ Clearance, PC-Rated, Round, Kit, 2.5", amber, poly bag
- Part Number
- 197KA
- Manufacturer
- PETERSON LIGHTING
- Description
-
LED Marker/ Clearance, PC-Rated, Round, Kit, 2.5", amber, poly bag
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
PETERSON LIGHTING part description
197 LumenX® 2-1/2" PC-Rated LED Clearance and Side Marker Lights
Features & Benefits
- Single-diode LED design with white diode behind colored lens
- Round, 2.5" diameter models
- Functions as both clearance and side marker light when mounted at a 45° angle
- 9-16 volt operating range
- Available in grommet or flange mount versions
- 197F has flange welded to light, forming a single unit
- Accepts industry standard PL10 2-wire plug OR AMP-style plug
- Available in amber or red
Product Description
LED MARKER/CLEARANCE, PC, ROUND, KIT, 2.5"
Features & Benefits
- 2 ½" PC-Rated Clearance & Side Marker Light
- PC-rated light functions as both clearance and side marker when properly mounted.
- PL10 receptacle integrated into housing.

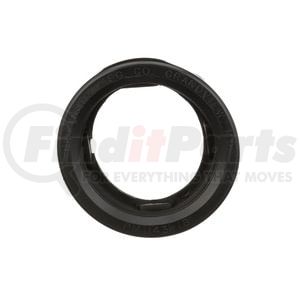

- Use 143-18 grommet for PC-rated grommet installation.
grommet - bulk pack - B143-18 - std qty 100
Product Attributes
| Bulb Technology | LED |
| Bulb/diode Count | 1 |
| California Prop65 Required | Y |
| Container Type | poly bag |
| Diameter | 2.5 IN |
| Height | 2.5 in |
| Integral Reflex | N |
| Length | 2.5 in |
| Lens Color | amber |
| Light Color | amber |
| Maximum Voltage | 16 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | grommet |
| Multi-volt | N |
| Pc Rated | Y |
| Regulatory Compliance | DOT |
| Shape | 2-1/2-inch round |
| Submersible | Y |
| Voltage | 12 Volts |
| Width | 1.19 in |
Additional Information
| Warranty Special | LIMITED LIFETIME WARRANTY See full warranty terms: https://pmlights.com/warranty |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8512202000 |
| UPC | 00044464996035 |
| VMRS Code | 034004462 |
Part Interchanges
Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
