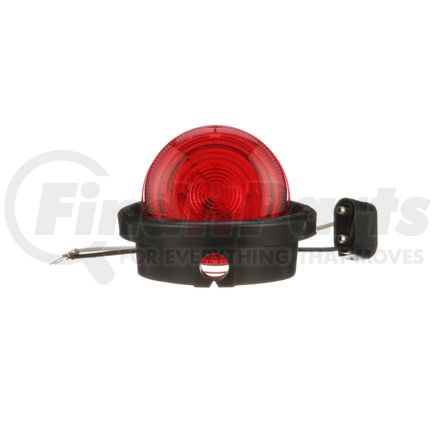

Name: Peterson Lighting 197KR LED Marker/ Clearance, PC-Rated, Round, Kit, 2.5", red, poly bag
SKU: 197kr
Price: 119.88 USD
Availability: InStock

PETERSON LIGHTING part description

197 LumenX® 2-1/2" PC-Rated LED Clearance and Side Marker Lights

Peterson Lighting LumenX® 2-1/2" PC-Rated LED Clearance & Side Marker Light

The Peterson Lighting LumenX® 2-1/2" PC-rated LED clearance & side marker light offers improved trucking safety as it alerts other road users of your vehicle’s location, position, and dimension in poor visibility situations. It is also a perfect way to add a unique style to your rig while keeping it safe on the road.

Features & Benefits

A single-diode round 2-1/2" dia. LED with white diode behind the colored lens
Works both as clearance and side marker light when mounted at a 45-degree angle
Designed to accept industry-standard AMP-style plug or PL10 2-wire plug
A grommet mount version with 9- to 16-volt operating range
Manufactured to meet the highest quality and safety standards

Product Description

LED MARKER/CLEARANCE, PC, ROUND, KIT, 2.5"

Features & Benefits

2 ½" PC-Rated Clearance & Side Marker Light
PC-rated light functions as both clearance and side marker when properly mounted.
PL10 receptacle integrated into housing.
Use 143-18 grommet for PC-rated grommet installation.

grommet - bulk pack - B143-18 - std qty 100

Product Attributes

Bulb Technology	LED
Bulb/diode Count	1
California Prop65 Required	Y
Container Type	poly bag
Diameter	2.5 IN
Height	2.5 in
Integral Reflex	N
Length	2.5 in
Lens Color	red
Light Color	red
Maximum Voltage	16 Volts
Minimum Voltage	9 Volts
Mounting Type	grommet
Multi-volt	N
Pc Rated	Y
Regulatory Compliance	DOT
Shape	2-1/2-inch round
Submersible	Y
Voltage	12 Volts
Width	0.9 in

Additional Information

Warranty Special	LIMITED LIFETIME WARRANTY See full warranty terms: https://pmlights.com/warranty
Warranty Special UOM	TX
Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8512202000
UPC	00044464996042
VMRS Code	034004462

Part Interchanges

Truck-Lite 10075R

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
